Full auto. fence mesh welding machine(pre-cut wire type)

Operation system:PLC(Programmable Logic Controller)
Dynamic system: pneumatic-electric mixed
Classification: industry series

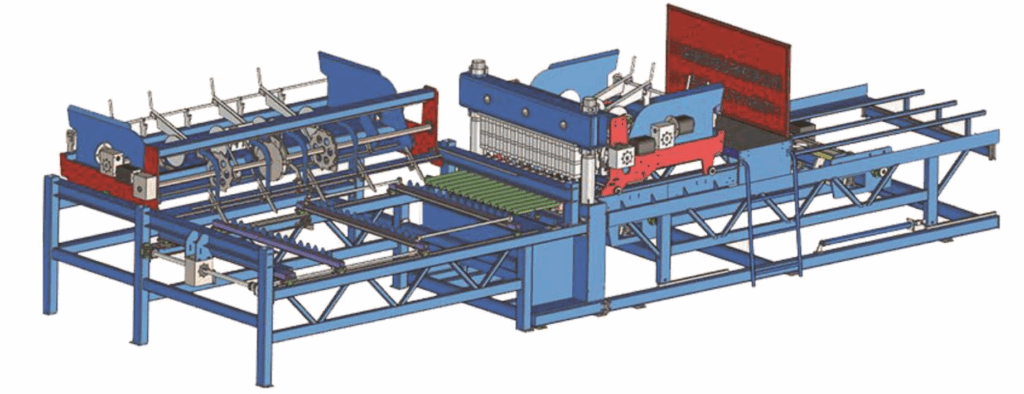

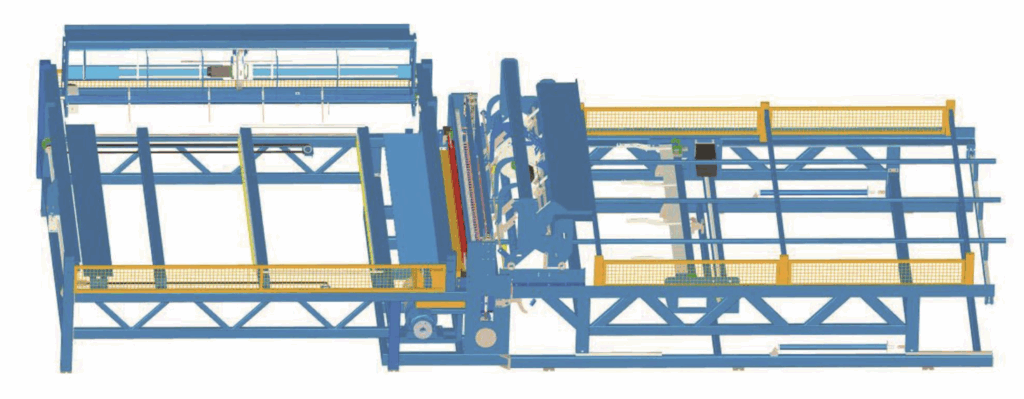

Product summary: automatic fence mesh welding machine, mesh width 2500mm, wire diameter can be customized 3mm-6mm, 4mm-8mm and 6-12mm, welding speed 60-96 times/min., line wire feeding form in pre-cut wire, cross wire feeding ni pre-cut wire.
Standard configuration: auto placement of line wire, cross wire supplement hopper, main welding machine.servo motor mesh pulling, auto mesh output device, auto stacking , industry water cooling machine Optional configuration: mesh output supporting roller, line wire supporting platform, stacking cart, air compressor, intermediate frequency welding system.

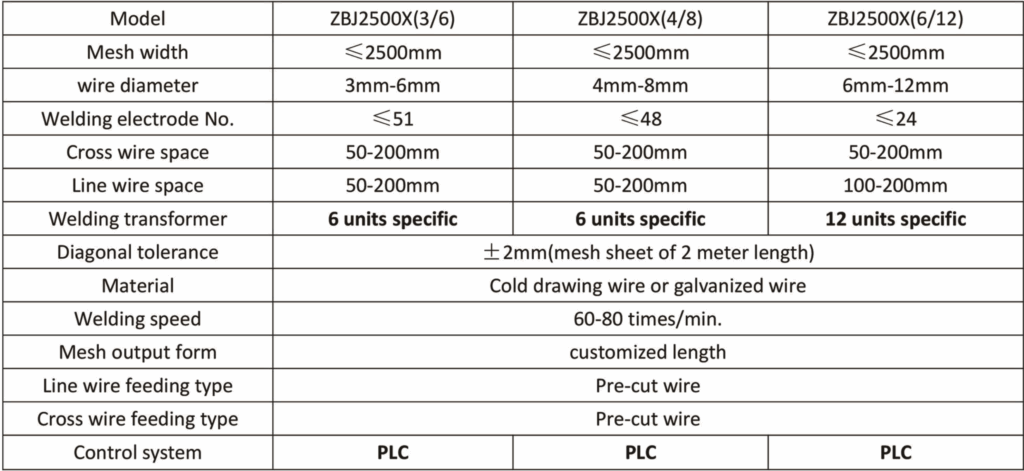

Technical Parameters
