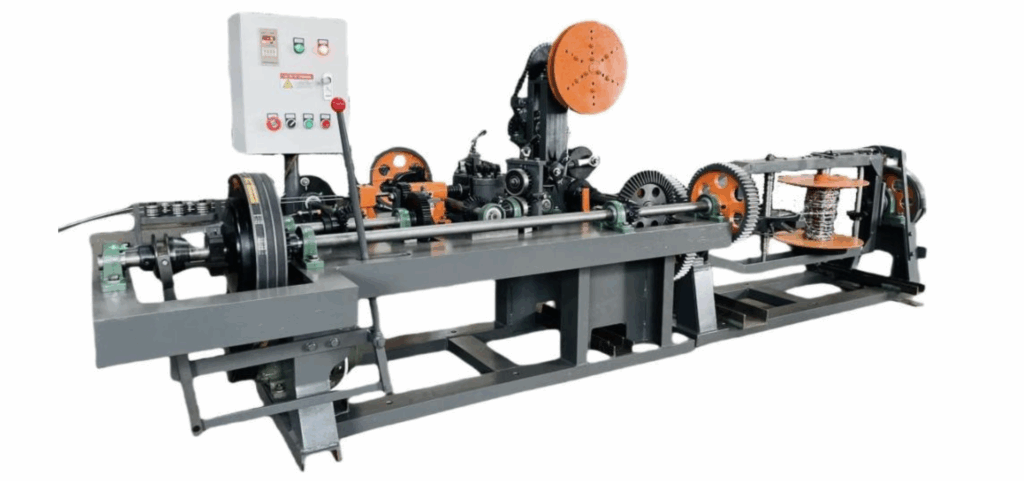

Machine：CS-A Double wires barbed wire machine
Specification：
| Motor | 3kw | |||||
| Voltage | 380V 50Hz 3 phase | |||||
| Main wire diameter | 1.6-3.0 mm | |||||
| Barbed wire diameter | 1.6-2.3 mm | |||||
| Barbed Space | 3 inch(7.5cm) | 4 inch(10cm) | 5 inch(12.5cm) | 6 inch(15cm) | ||
| Output | 810 m/h | 1080 m/h | 1350 m/h | 1620 m/h | ||
| Overall Size | Main :2000*1200*1400mmAuxiliary: 1700*500*800mm | |||||
| Barbed wire roll size | Inner shape :square or roundInner diameter，outer diameter and height can be customized according to requirements | |||||
| Wire | Galvanizend iron wire | |||||
